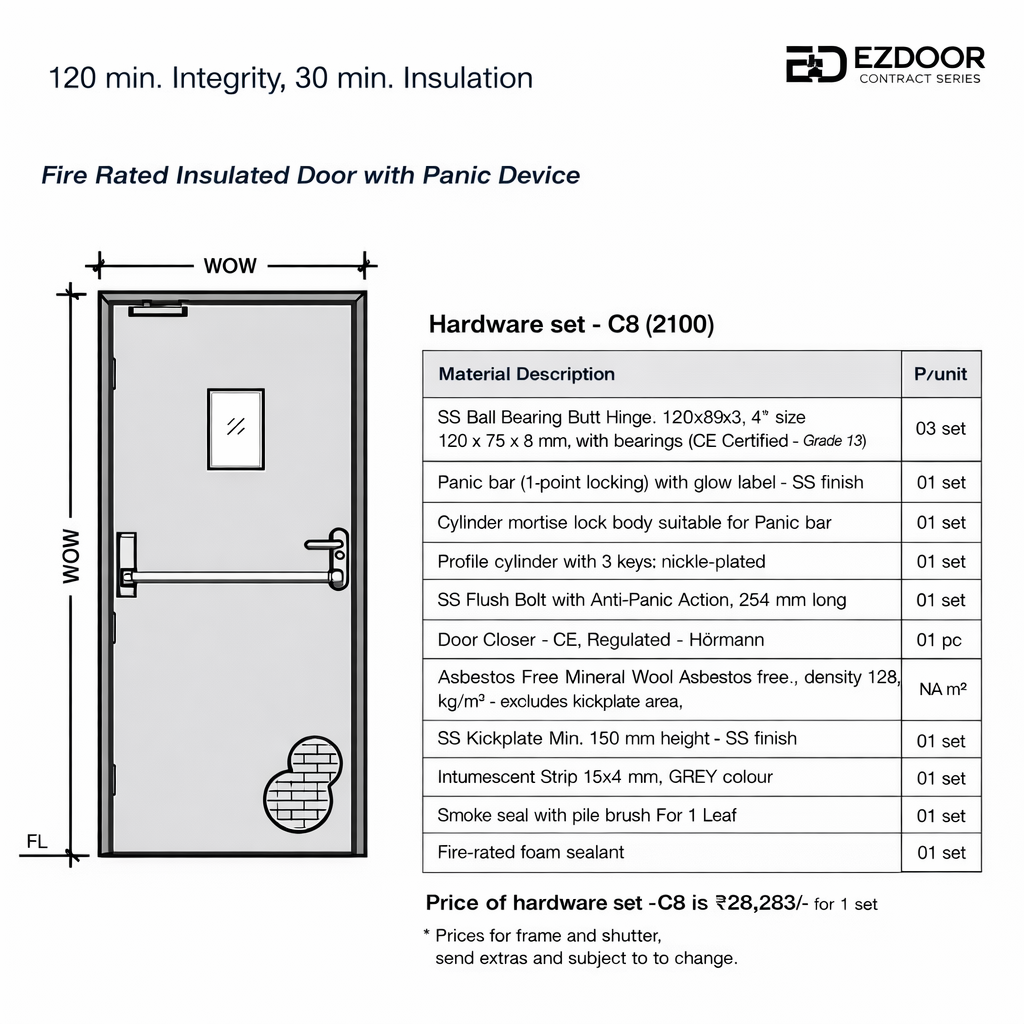

Fire Rated Insulated Door with Panic Device
An FD120 rated insulated fire door (120 min. Integrity, 30 min. Insulation). The diagram shows it equipped with a surface-mounted single-point panic latch across the width of the door, a top-mounted surface door closer, and an external lever handle.

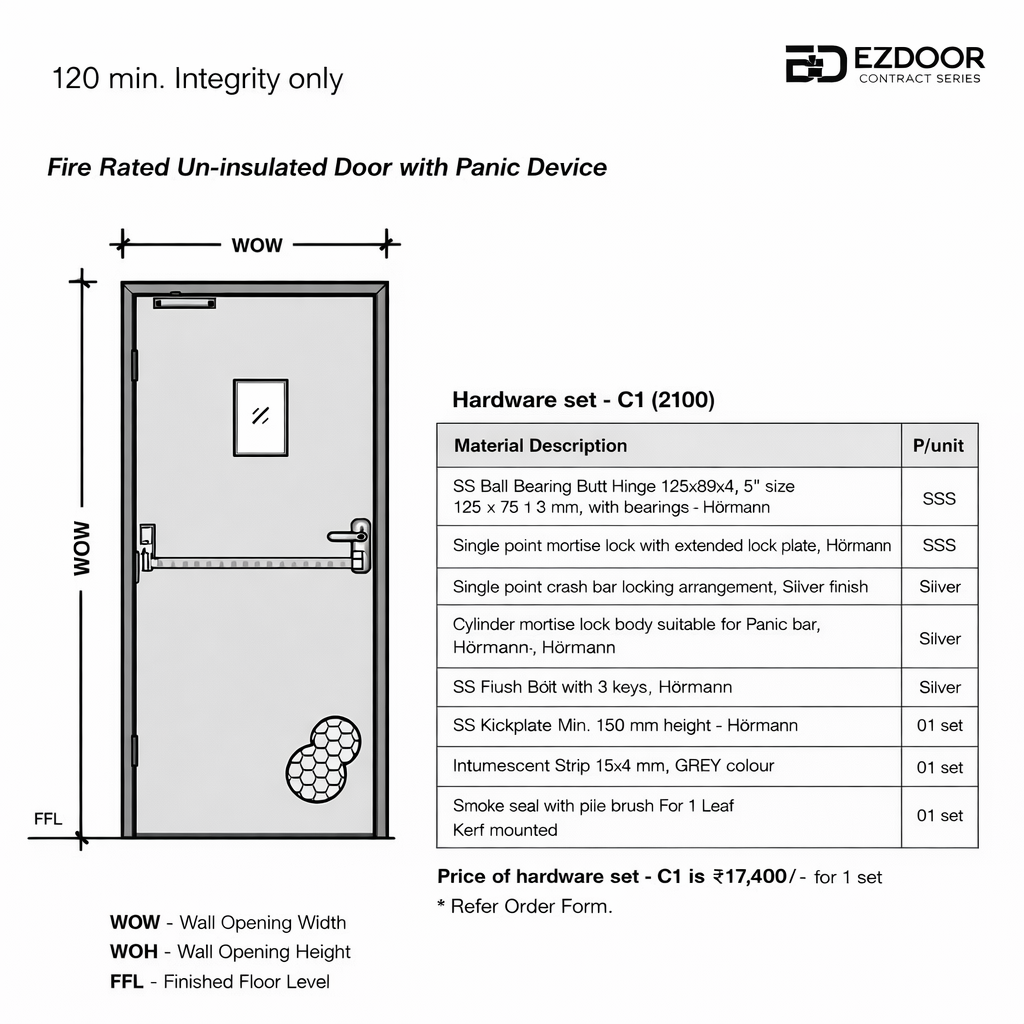

Fire Rated Un-insulated Door with Panic Device
An FD120 rated un-insulated fire door (120 min. Integrity only). Visually similar to the insulated version, this door is also shown with a panic bar for emergency egress, a door closer, and an external lever handle.

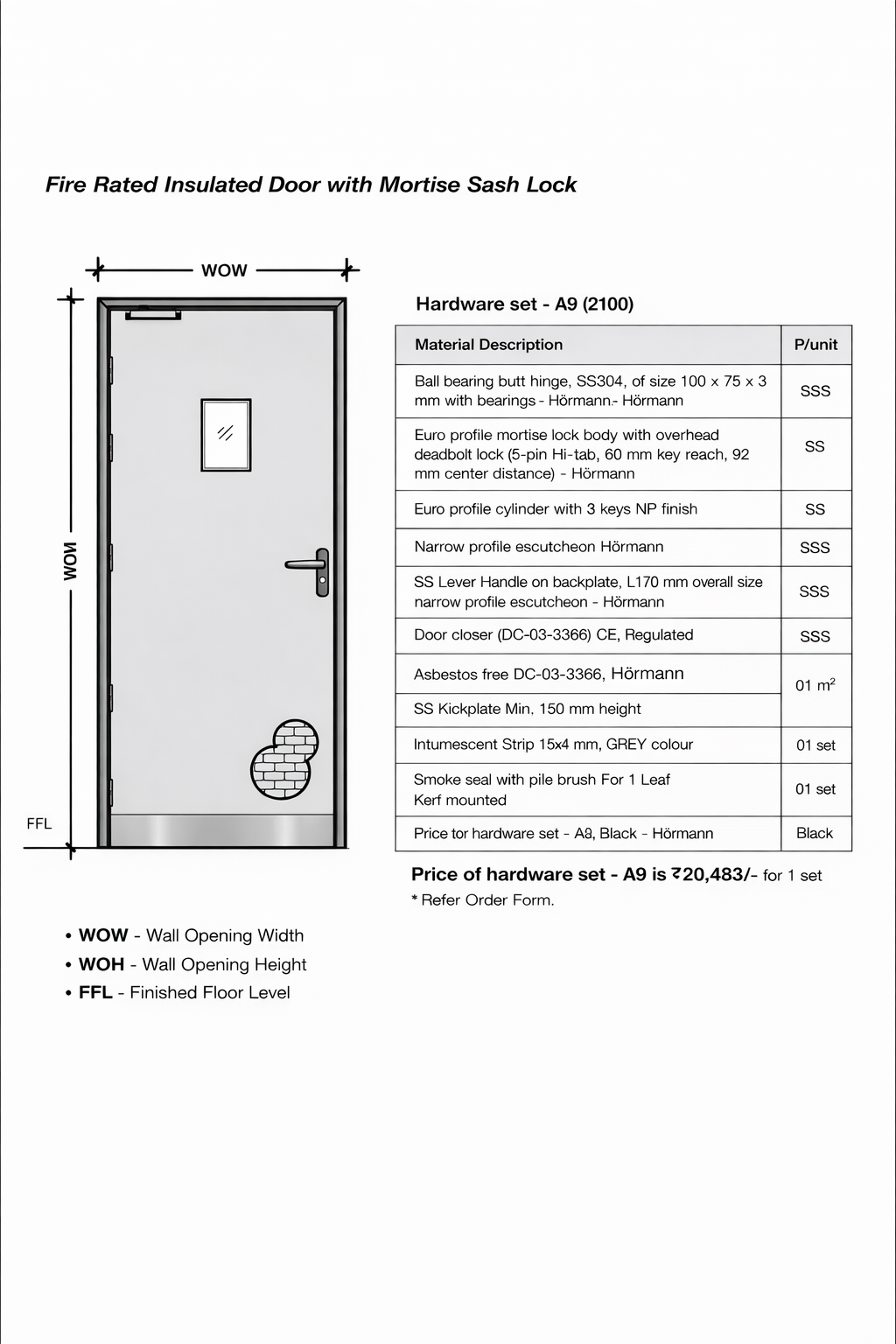

Fire Rated Insulated Door with Mortise Sash Lock
This insulated fire door diagram replaces the panic device with a standard locking mechanism. It illustrates a narrow profile lever handle with an oval escutcheon and a mortise sash lock. It includes a surface door closer.

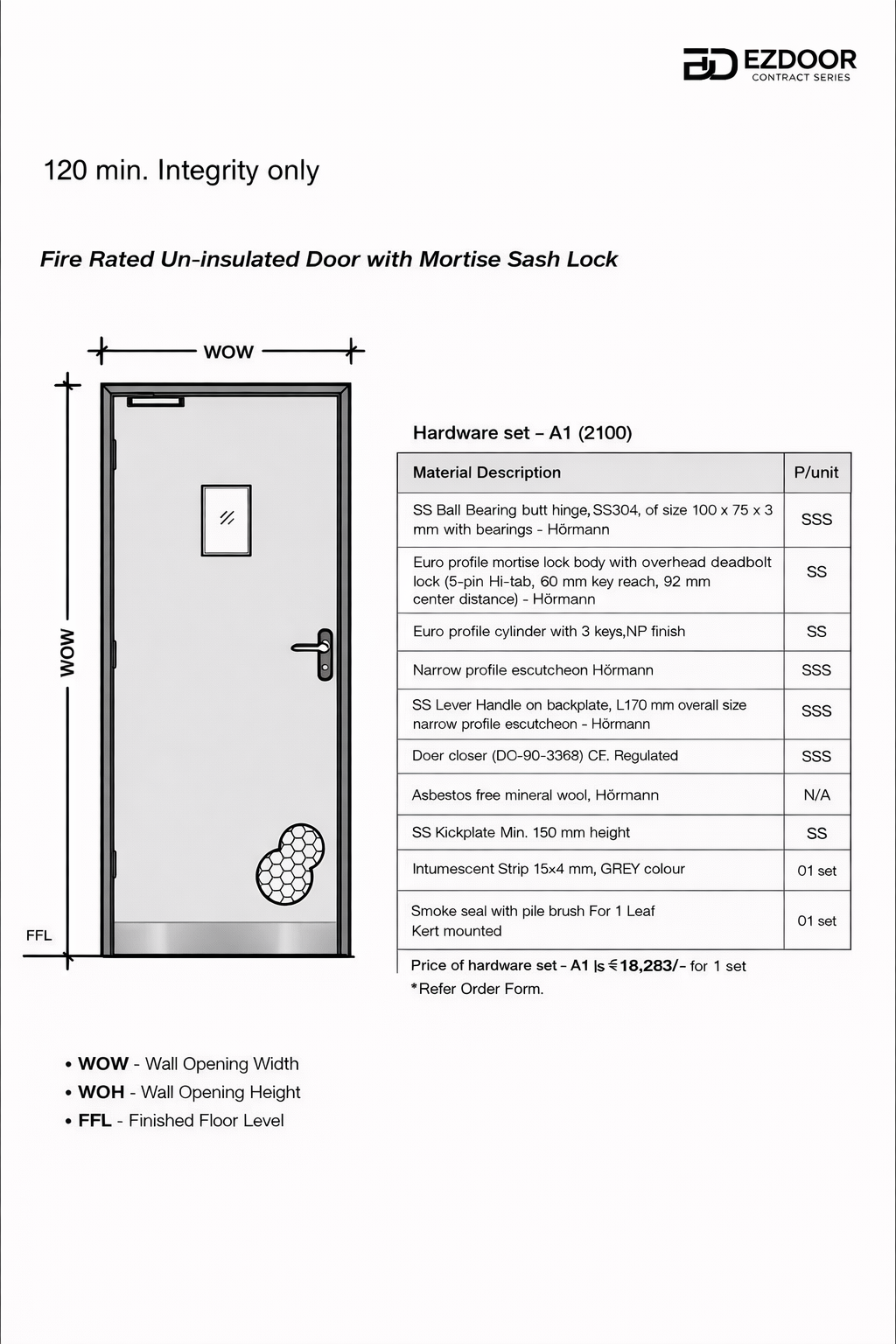

Fire Rated Un-insulated Door with Mortise Sash Lock
An un-insulated fire door (120 min. integrity) featuring a standard entry setup. The hardware depicted includes a mortise sash lock and a standard lever handle with roses and an escutcheon.

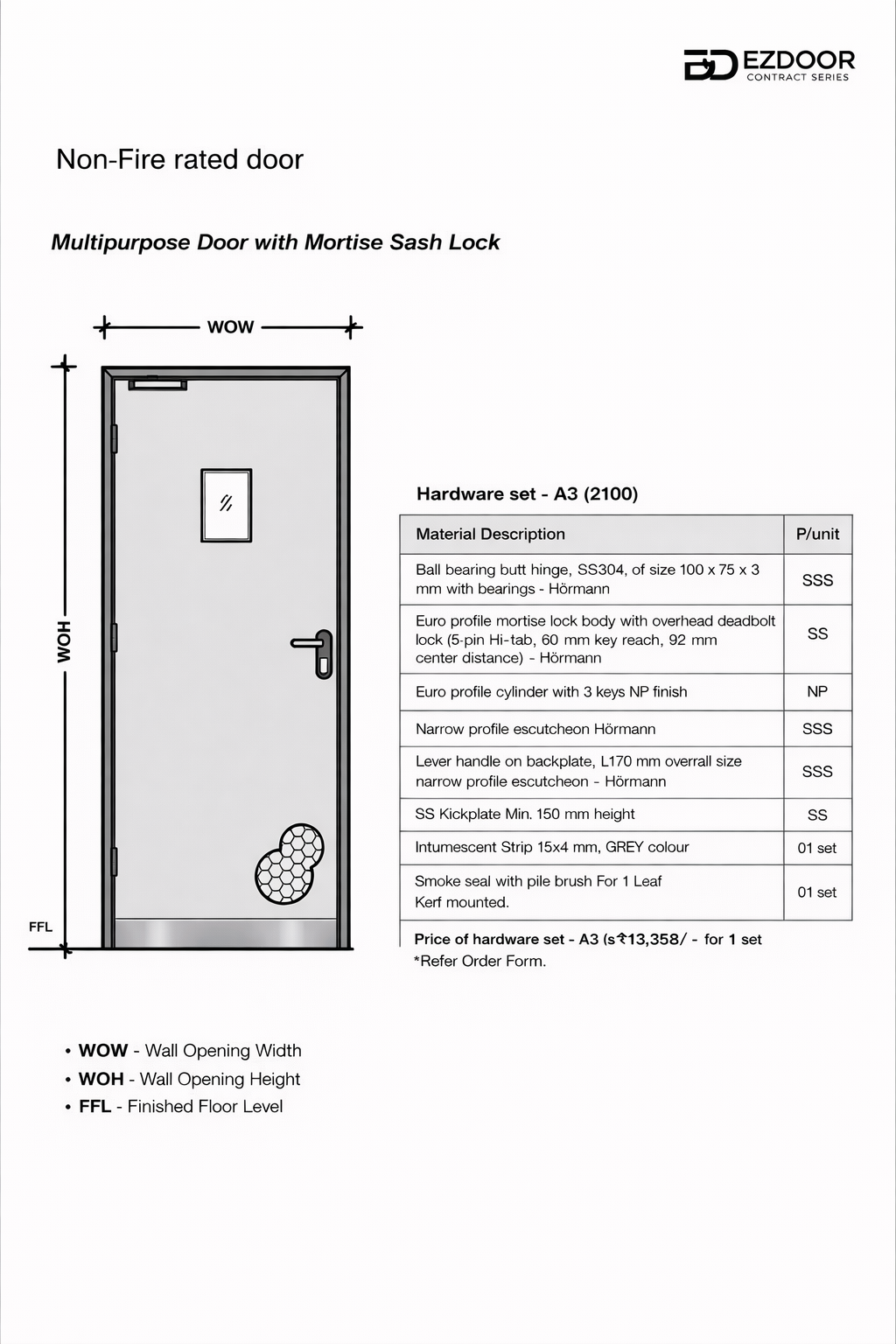

Multipurpose Door with Mortise Sash Lock
A non-fire-rated general-purpose door. It is illustrated with a mortise sash lock and a standard stainless steel lever handle.

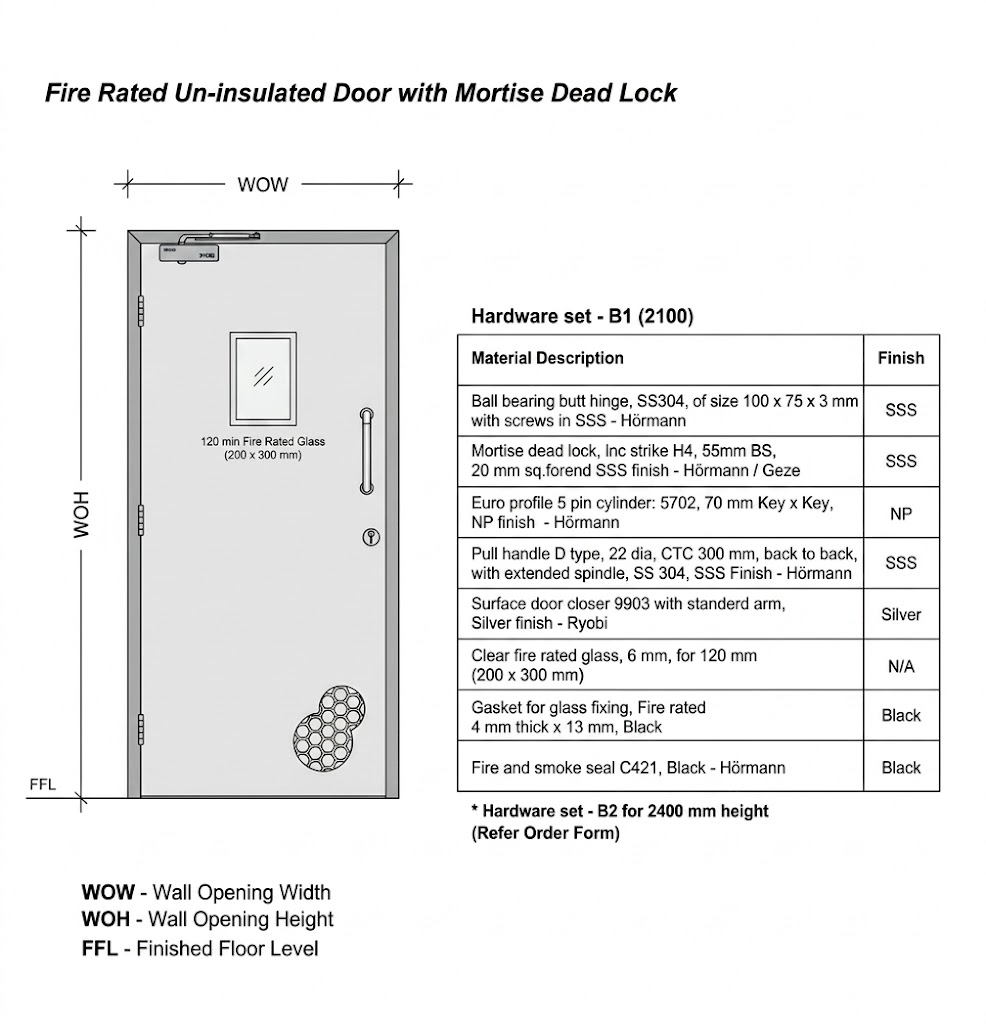

Fire Rated Un-insulated Door with Mortise Dead Lock
This un-insulated fire door diagram is shown configured for push/pull operation. It features a mortise dead lock, a Euro profile cylinder, and a vertical D-type pull handle instead of a standard lever

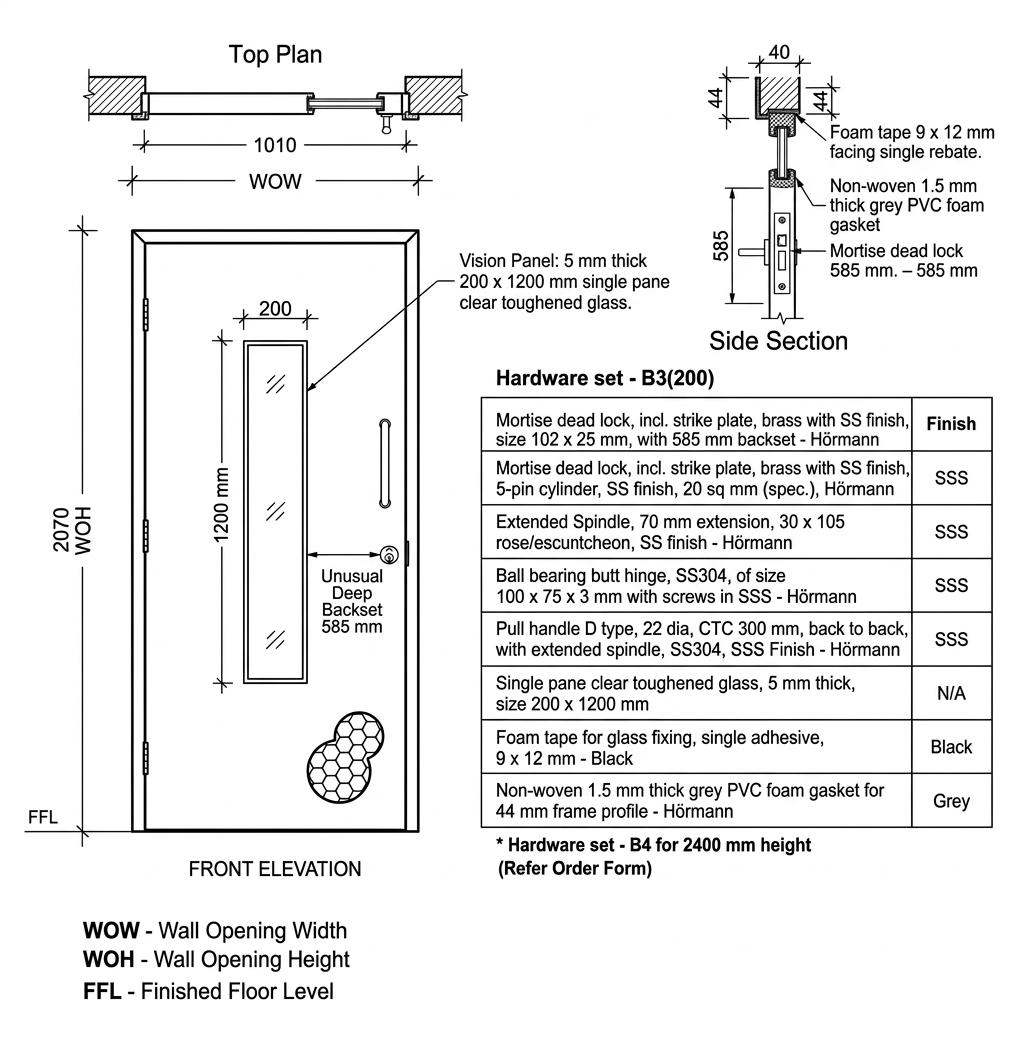

Multipurpose Door with Mortise Dead Lock
A non-fire-rated general-purpose door. Like its fire-rated counterpart above, it is equipped with a mortise dead lock and a vertical D-type pull handle for operation.
